Water Cooled Copper Panel

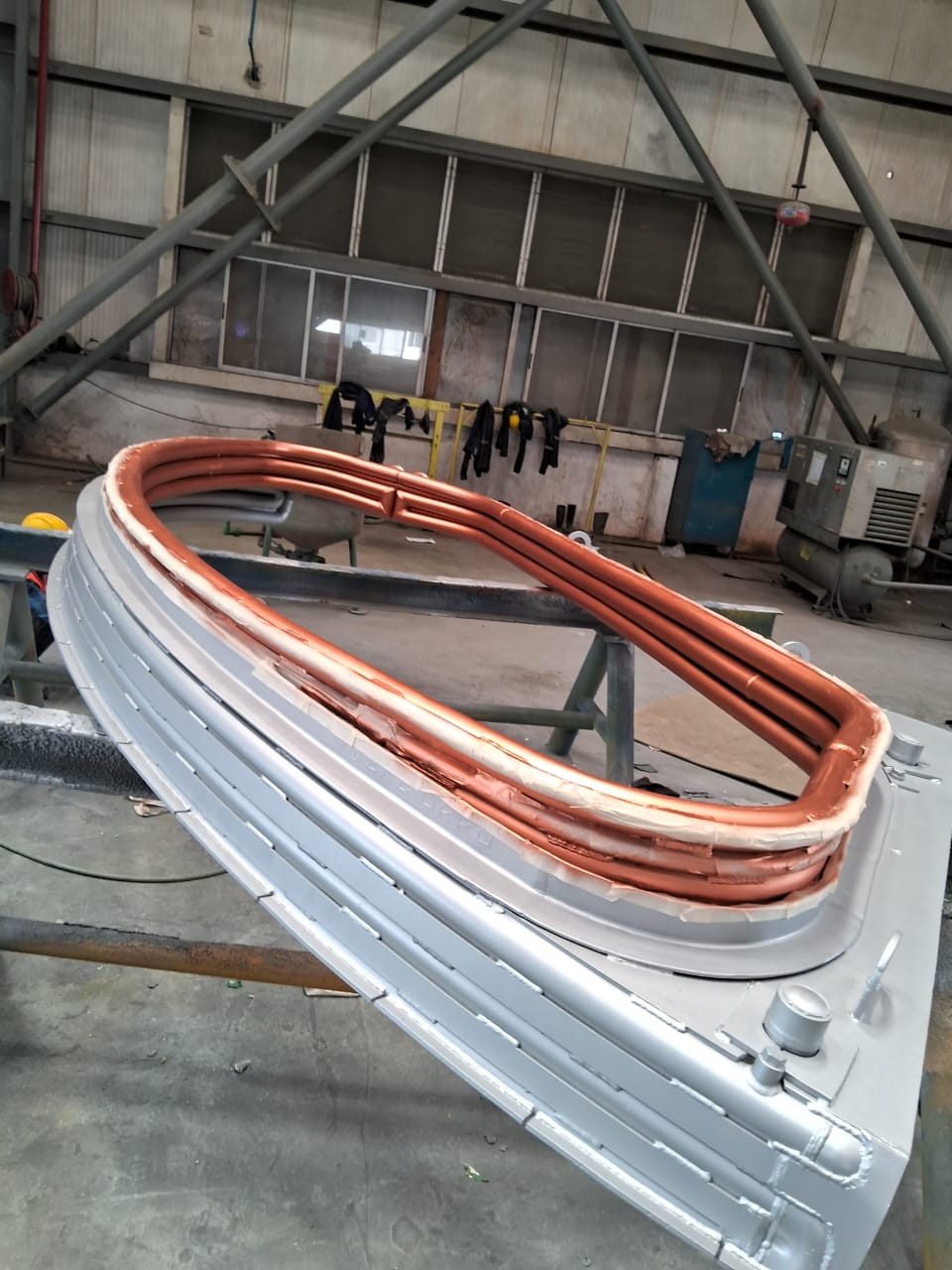

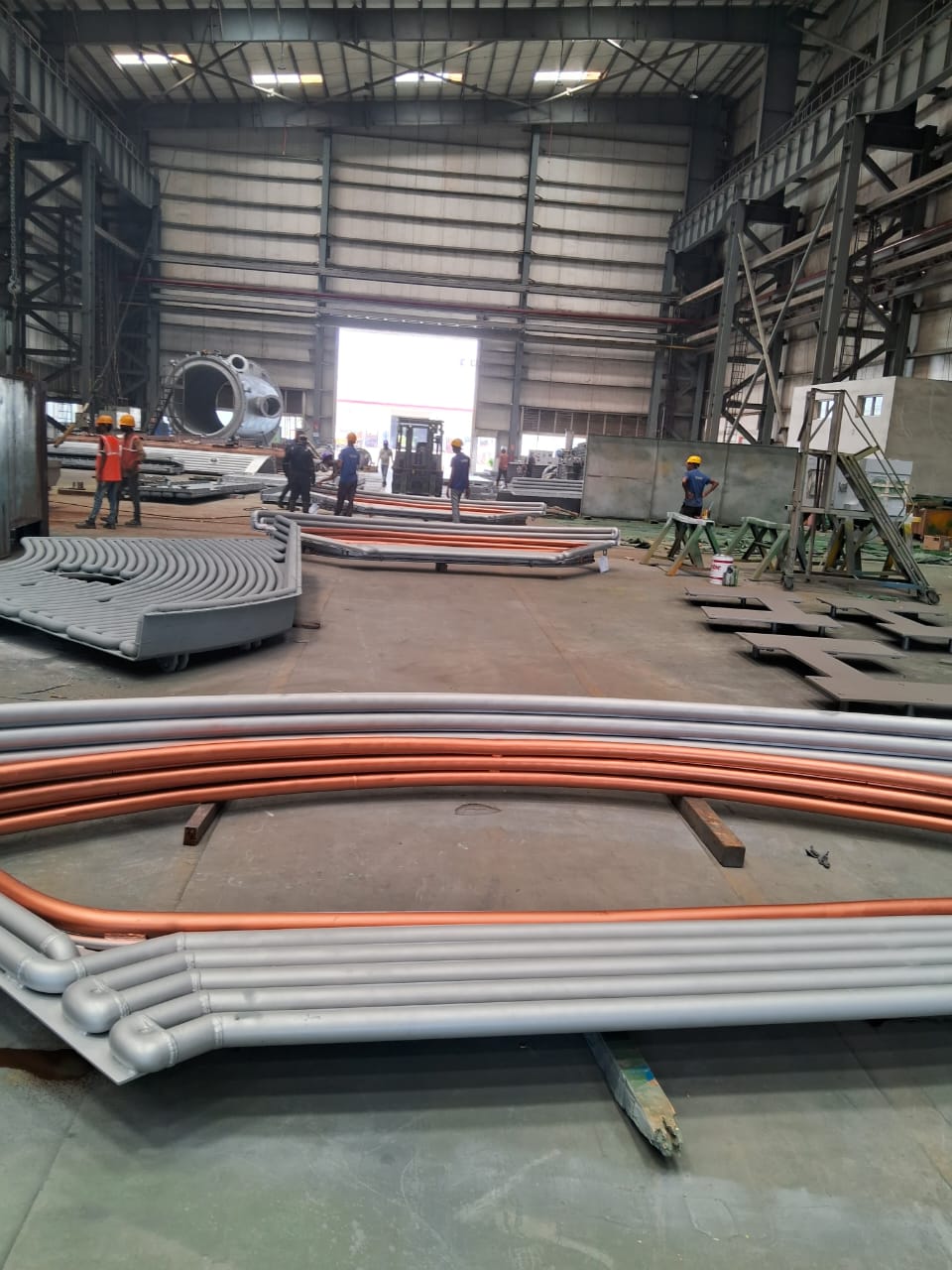

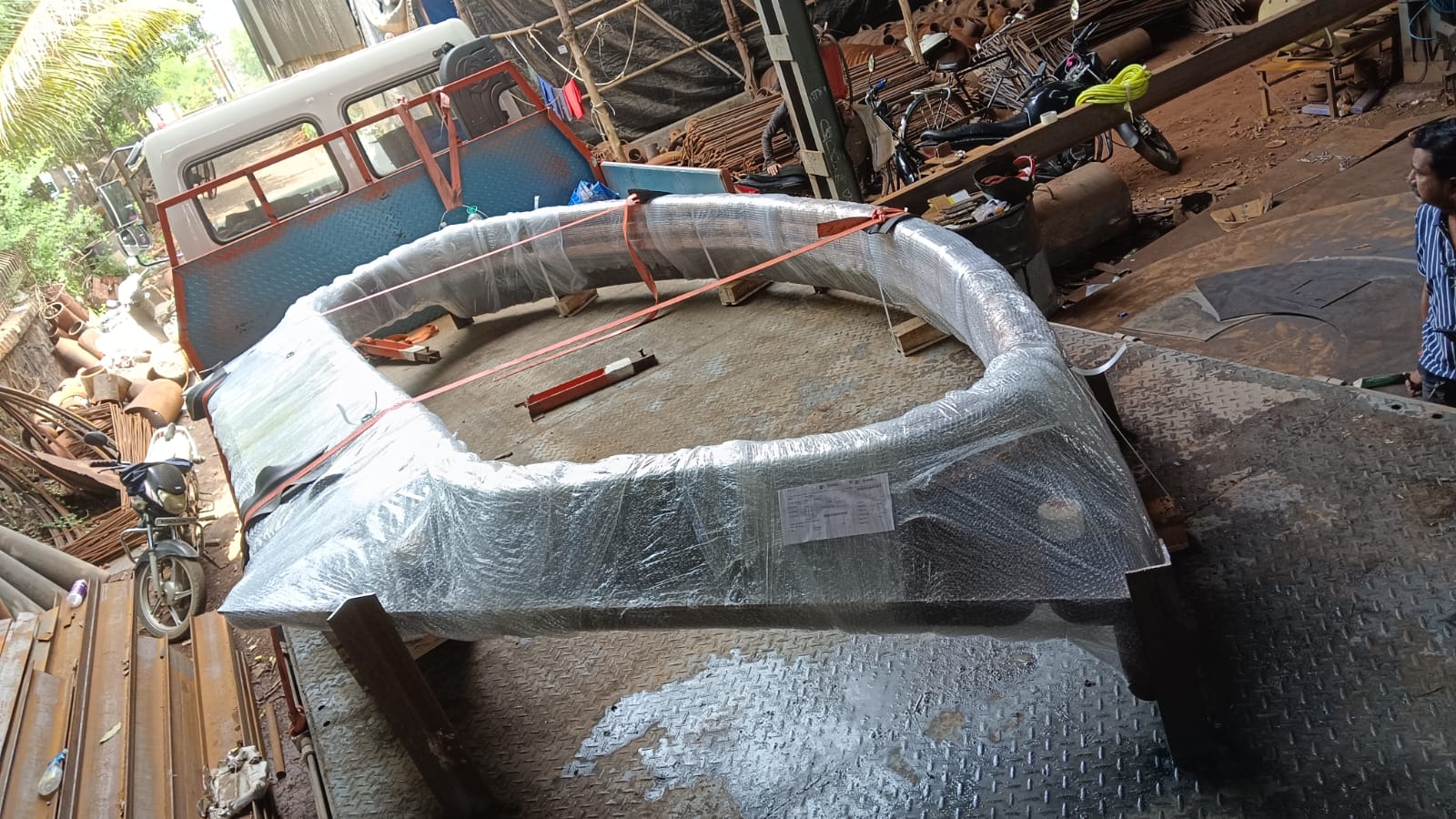

Our Water Cooled Copper Panels are precision-engineered for Induction Furnaces and Electric Arc Furnaces, ensuring maximum durability under extreme thermal and mechanical stresses. Fabricated from high-conductivity copper, these panels provide efficient cooling, longer service life, and reliable furnace protection. We manufacture a wide range of Copper Panels, Backing Ring Copper, Delta Ring Copper, and customized Copper Material Fabrications, designed to meet specific furnace requirements. Each panel is equipped with seamless copper tubes for continuous water circulation, preventing overheating and enhancing refractory life. Our copper cooling panels are available in standard and custom-built designs, suitable for furnace roofs, walls, and specialized sections. With precise fabrication, robust welding, and pressure-tested water circuits, our products guarantee high performance, safety, and efficiency.

1 / 3

2 / 3

3 / 3

Dimensions

Particulars	Range
Panel Size	Up to 1200 × 800 mm
Thickness	40 – 60 mm
Tubes	20 – 30 mm OD
Connections	1” – 1.5” BSP
Weight	50 – 250 Kg
Material	High Conductivity Copper
